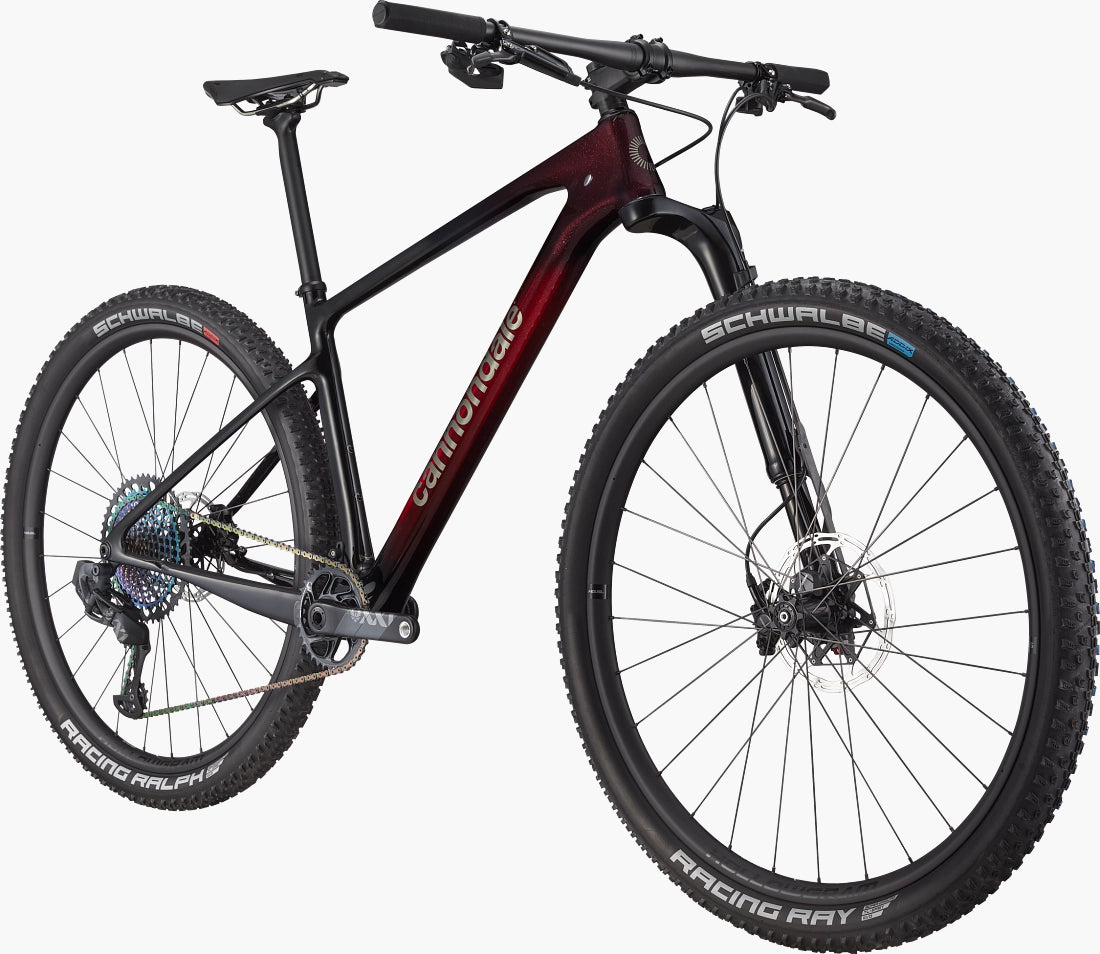

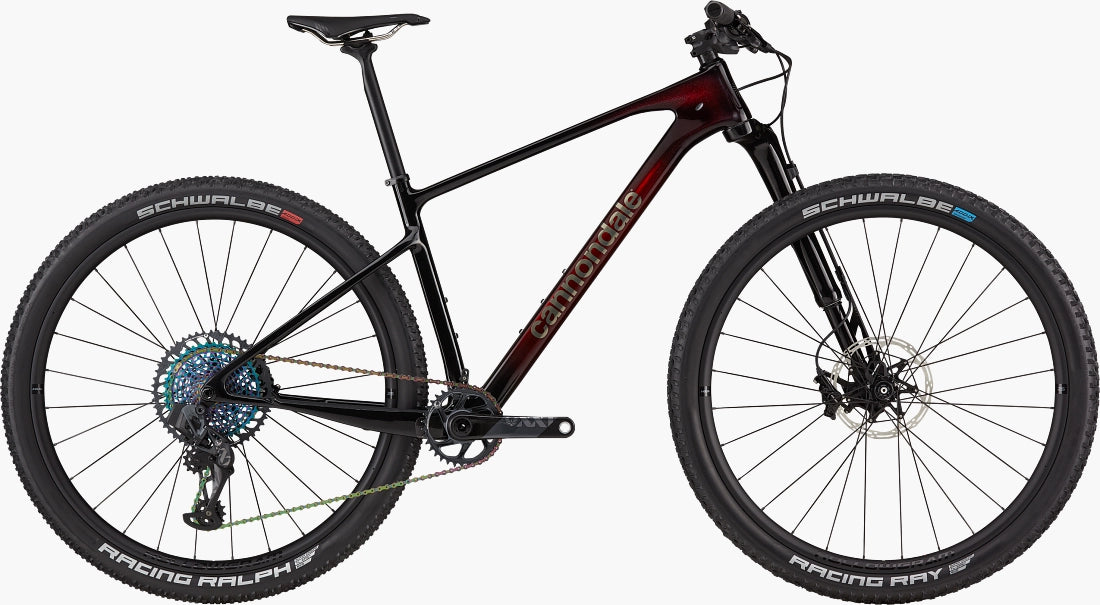

Scalpel HT Hi-MOD Ultimate

The Purest Form of Racing.
A whole new breed of XC Hardtail, purpose built to hurt ‘em on the ups, drop ‘em on the downs and propel you straight to the top step.

Su terreno
Between the tape

Para qué ha sido diseñada
Speed, Efficiency, and Endurance

Puntos clave
Progressive, ultralight Hi-MOD Carbon frame / Lefty Ocho Carbon 110mm fork
SRAM XX1 Eagle AXS wireless 12-speed group / Level Ultimate disc brakes
HollowGram 25 carbon tubeless-ready wheels / Cannondale C1 Carbon bar and post

Detalles
Plataforma: Scalpel HT
Nombre del modelo: Scalpel HT Hi-MOD Ultimate
Codigo del modelo: C25101U

Chasis
Cuadro: Scalpel HT Hi-MOD Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
Horquilla: Lefty Ocho 120 Carbon, 110mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
Dirección: Integrated, 1-1/8 to 1.5", sealed angular contact bearings

Transmisión

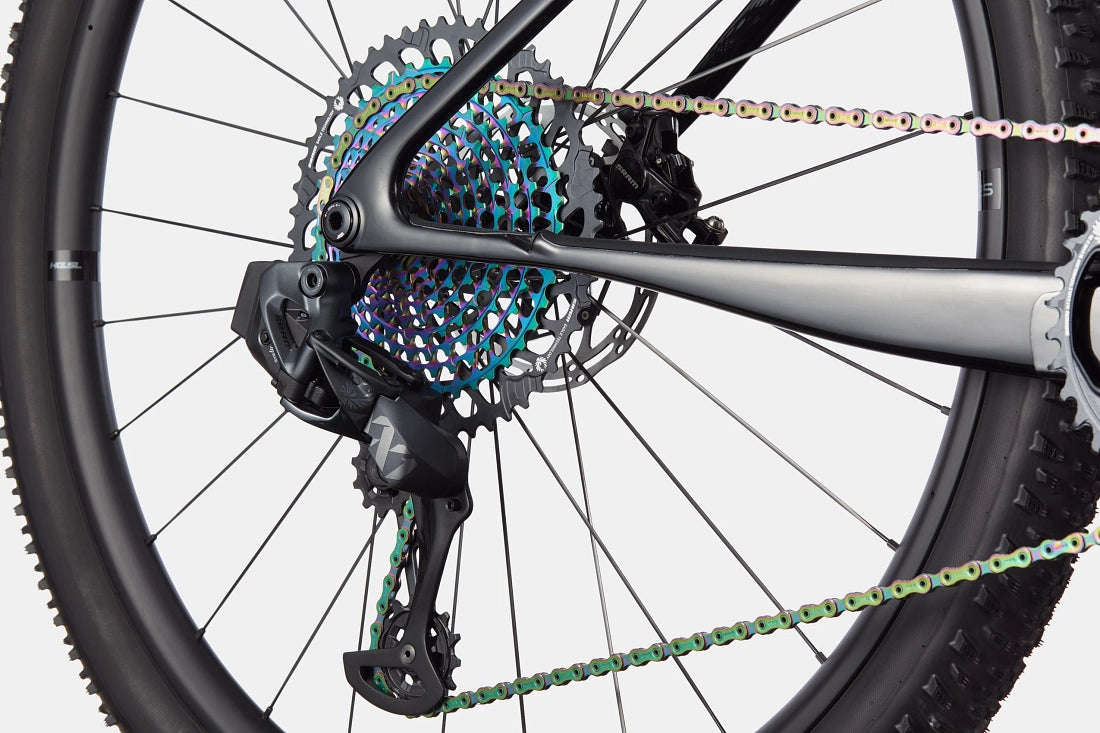

Cambio: SRAM XX1 Eagle AXS
Shifters: SRAM Eagle AXS, 12-speed
Cadena: SRAM XX1 Eagle, Rainbow, 12-speed

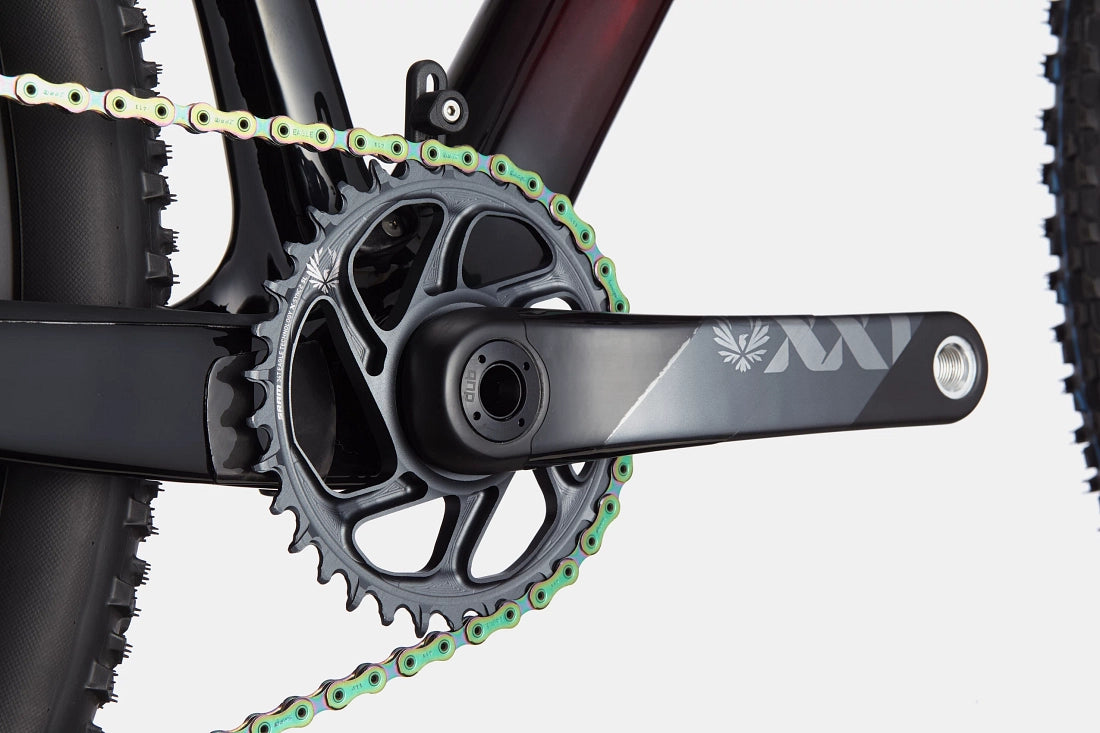

Bielas: SRAM XX1 Eagle DUB, 34T, 55mm chainline
Casette: SRAM XG-1299, XX1 Eagle, Rainbow, 10-52, 12-speed
Bottom Bracket: SRAM DUB PF30 MTB83

Frenos
Frenos: SRAM Level Ultimate hydraulic disc, 180/160 CenterLine X rotors
Manetas de freno: SRAM Level Ultimate hydraulic disc

Ruedas
Llantas: HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm inner width, tubeless ready
Radios: DT Swiss Competition Race, straight-pull
Medida de la cubierta: 2.25
Medida de rueda: 29
Bujes: (F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x14 8mm
Cubiertas: (F) Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
Cubierta delantera: Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready
Cubierta trasera: Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready

Componentes

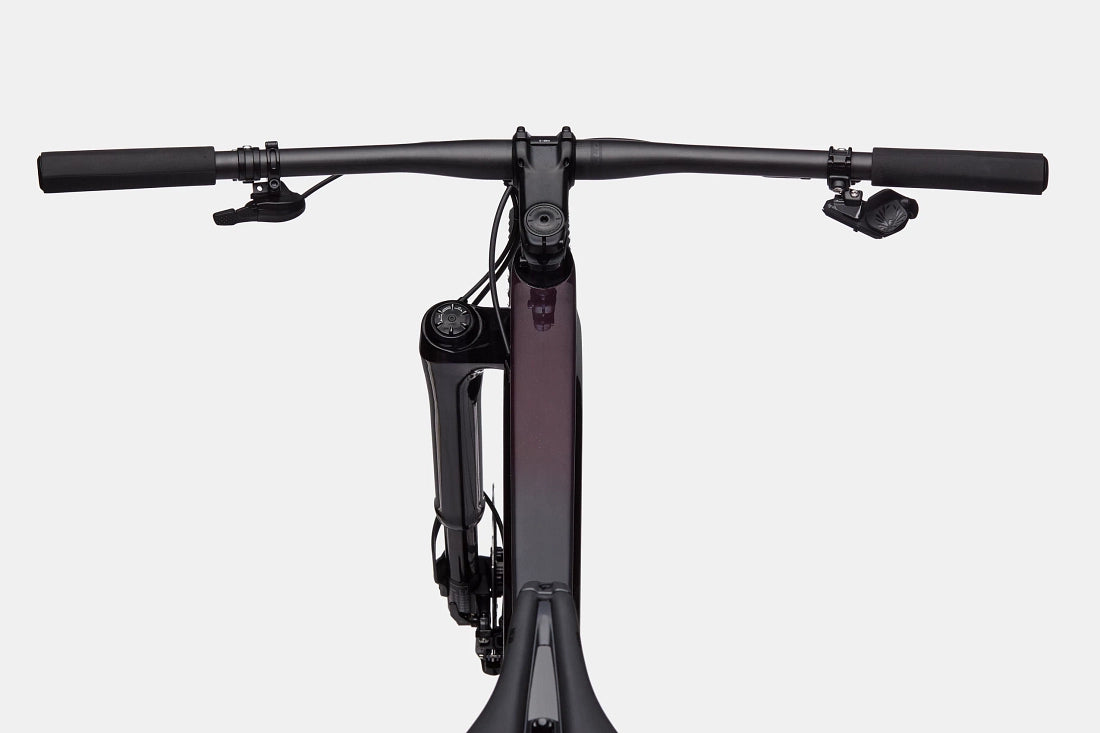

Manillar: Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
Potencia: Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Puños: Cannondale XC Silicone
Sillín: Prologo Dimension NDR, Tirox rails
Tija sillín: Cannondale C1 Carbon, 27.2x400mm

Extra
Extras: Tubeless valve stems
